Battery Box for EVs and Solar Applications

Our box is Designed for EV and Solar Applications

Key features include

• Designed to Hold up to NEW 32 EVE 105ah Cells
• $39.99 Each from BatteryHookup.com
• Configured as 16cells 2 in Parallel

• Nominal Voltage 51.2
• 210 Ah
• 11 kWh
• Max Continues Discharge 630A

• Confidence of using New Battery Cells

• Easy Mounting
• Built in Drill Bushing
• Precisely Drill Mounting Holes in your EV

• Easy Screw In Battery Terminals (no Soldering).

• Stack-able and Nesting Design
• Recommend Max 2 High for EVs
• Recommend Max 6 High for Stationary

• Precision CNC Machined
• Customizsble Panel for your Specific Electronics
• Initial Configs
• Option 1
• Blank Panel -

• you customize yourself
• Option 2 - Holes for the Following

• Single Thunderstruck BMS
• Power Connector
• 8 Pin Deutch Connector

• Option 3 - Holes for the Following
• Two Thunderstruck BMS
• One Thundertruck Control Module

• 8 Pin Deutch Connector
• Optional Plastic Separators From - AliExpress.com

• For Additional Battery Protection
• Very neat wiring for your Battery Management


____________________________________________

 Estimated Base DIY Cost Per Box

$1,549.00 Battery Box
$1,279.00 32 EVE LF105 Cells (11 kWh)

$   109.12 Battery Bracket Cell Holders

$               Management - you decide
$               Power connector - you decide
$2,937.12

Which works out to approximately $267/kWh

Tesla Power Wall 2  - $851/kWh
13.5 kWh
$9,200 to $11,500

Source

      ____________________________________________

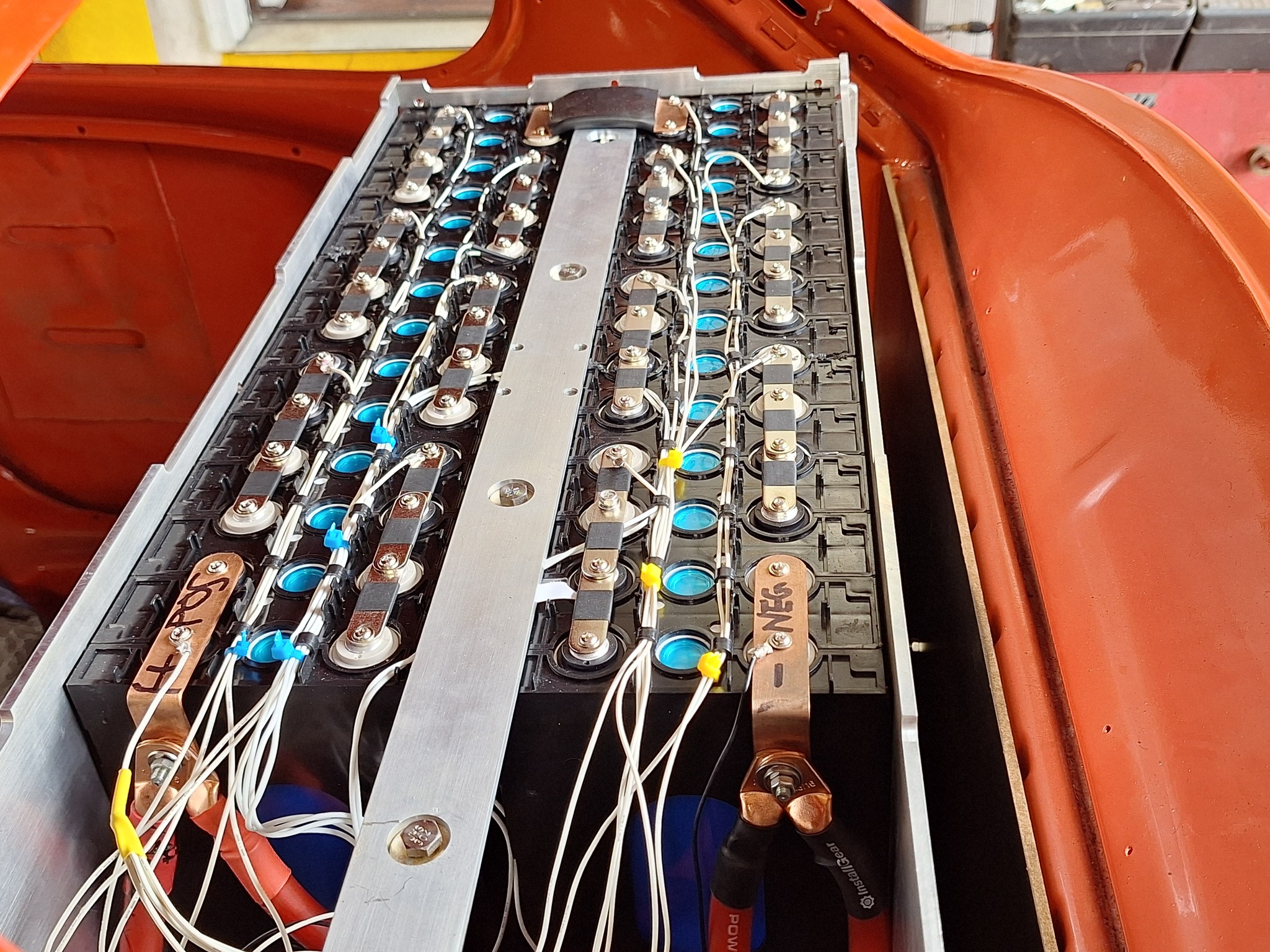

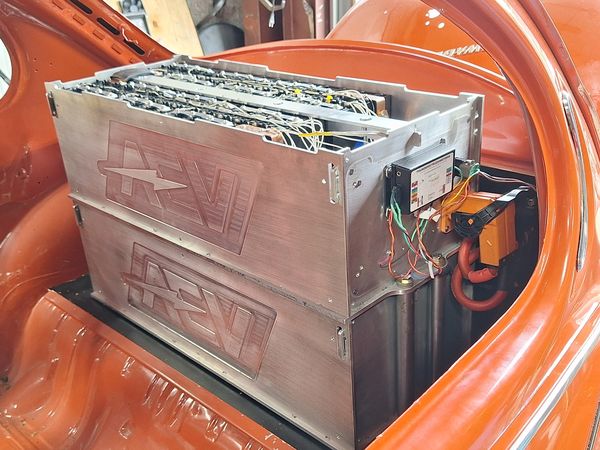

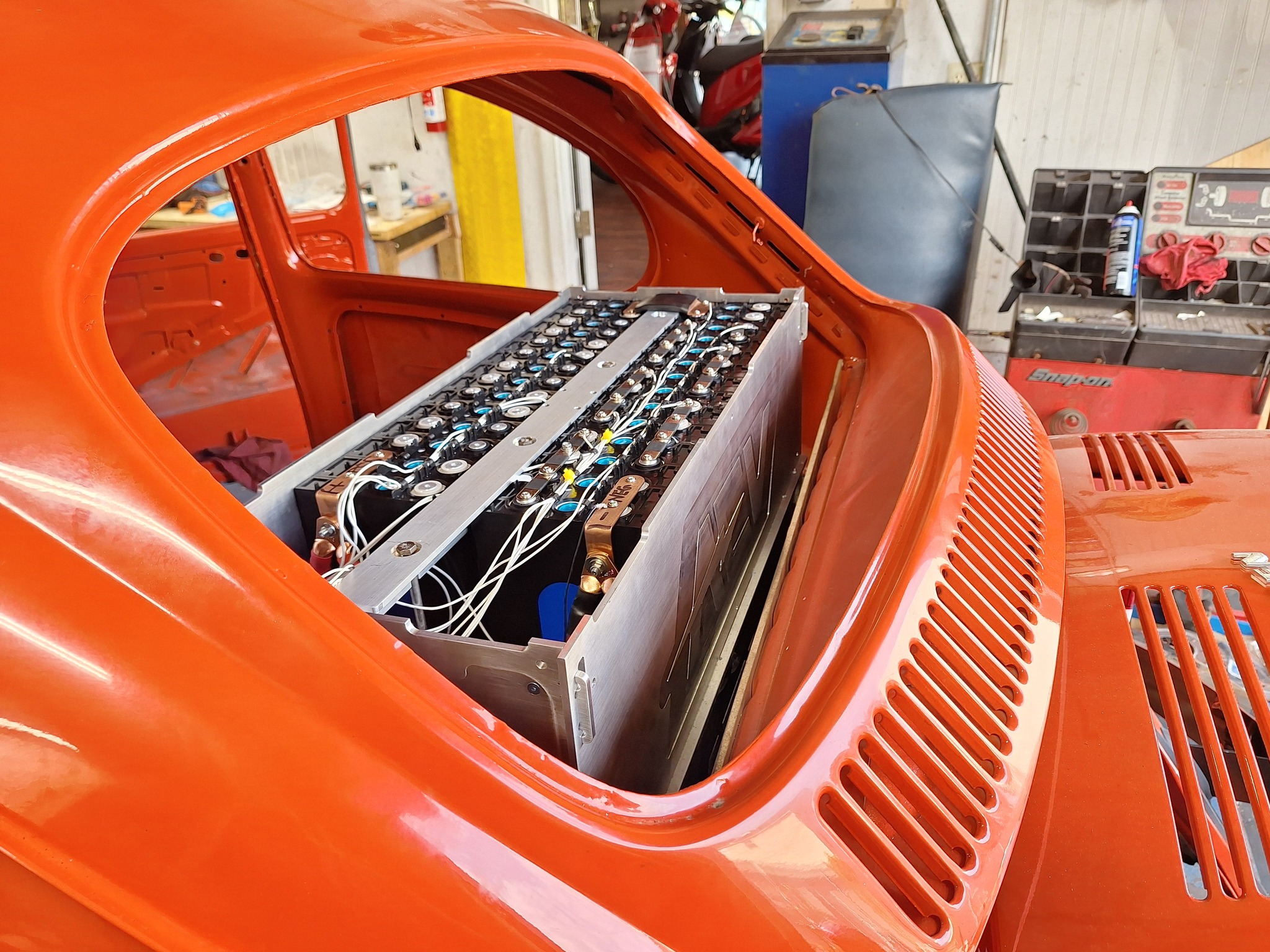

Two High Stack for VW Bug
Up to 22 kWh System

VW Bug Kit

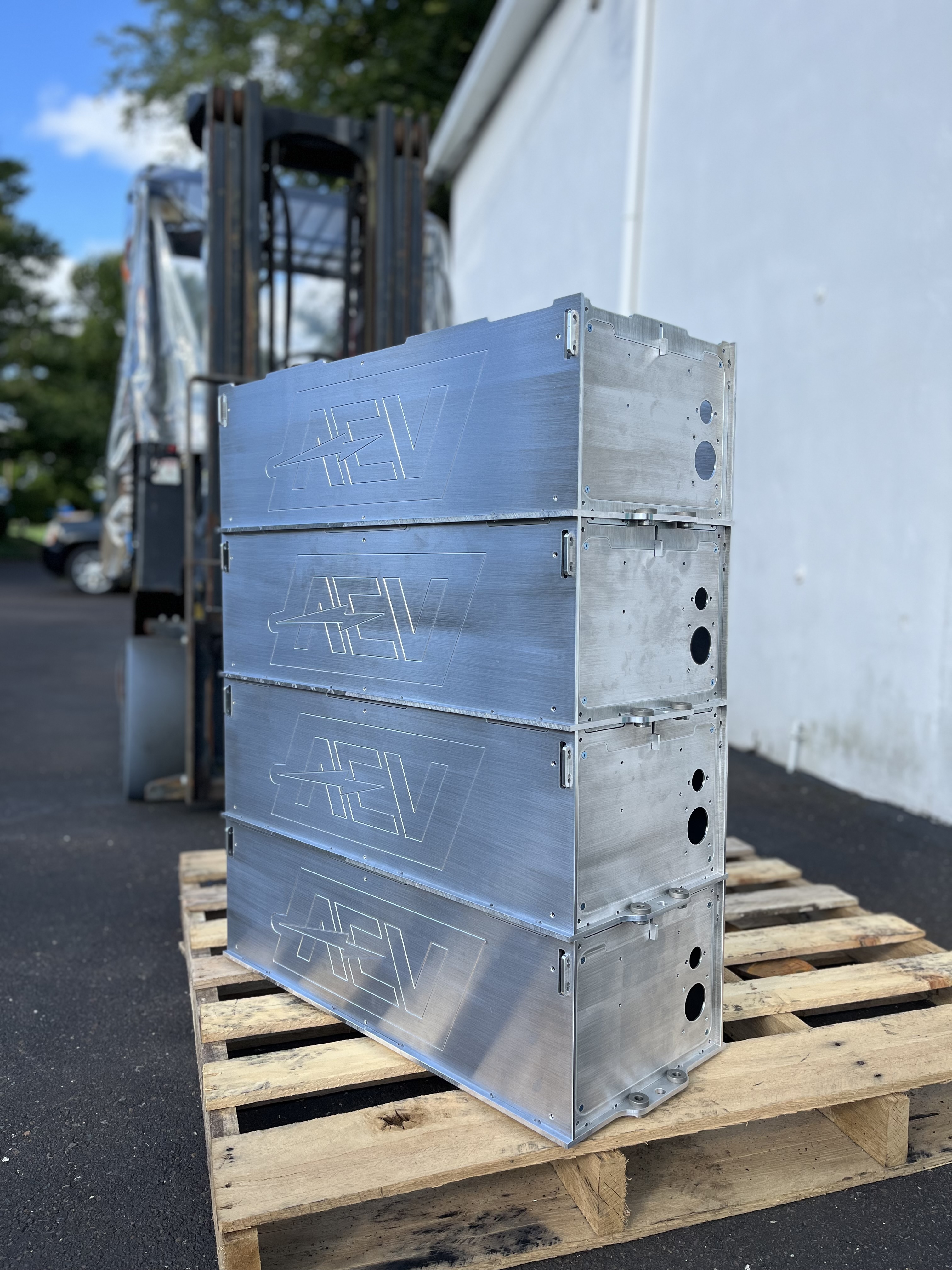

Four High Stack for
Stationary Solar



For more information, email us @ sales@hoffmanntool.com.
